Large School Backup Emergency Power Supply 1000KW Weichai Boduan Diesel Generator Set

Name: Large School Backup Emergency Power Supply 1000KW Weichai Boduan Diesel Generator Set
Brand: weichai
Price: 87 USD

China Large School Backup Emergency Power Supply 1000KW Weichai Boduan Diesel Generator Set wholesale

Warranty : 3months-1year

Place of Origin : China

Brand Name : weichai

Model Number : 12M33D1108E200

Rated Voltage : 230V, 400V

Rated Current : 1800A

Speed : 1500RPM, 1800RPM

Frequency : 50/60HZ

Starting system : Auto Start

Type : Trailer Type, Silent type, Container Type, Super Silent Type, Open Frame, Portable Type, Mobile Type, Canopy Type, Silent

Weight : 7300Kg

Cooling System Type : Water cooling system

Alternator : Marathon

Options : Automatic Transfer Switch

Engine type : Direction Injection

Product Name : Silent speaker unit

Color : Customers' Request

Phase : 1 Phase/3 Phase

ControllerControl panel : Smargen

Rated Power : 1000KW

Packaging Details : Box packaging

Price : $87,099.00/units >=1 units

MOQ : 1 unit

Contact Now

Details Images

1000KW Weichai Boduan diesel generator set

technical specifications (1) Model: 1000GF Common power (KW): 1000 Backup power (KW): 1108 Frequency: 50Hz Output voltage: 400/230V Speed: 1500rpm Power factor: COS Φ= 0.8 (lag) Fuel consumption (g/Kw * h): 210 (recommended to use No. 0 diesel) Output current (A): 1800 Number of phases/lines: three-phase four wire Noise LP7m: 108db External dimensions (mm): 4300 * 1800 * 2135 (external dimensions are subject to the actual product) Weight: 7800Kg (weight based on actual product) (2) Diesel engine: Brand: Boduan Origin: Boduan (Weifang) Power Co., Ltd Model: 12M33D1108E200 Cooling start: closed water cooling Starting method: 24V DC power start Number of cylinders: 12 Cylinder arrangement: V-shaped Displacement: 39.2L Compression ratio: 15:1 Diesel engine cylinder diameter/stroke mm: 150/185 Diesel engine coolant capacity: 75.94L Diesel oil pan capacity: 146L Fuel supply method: direct injection Air intake method: turbocharging and intercooling Intercooling method: water cooling Fuel model: Domestic 0 # light diesel Speed regulation method: electronic speed regulation Oil model: WD/40 Net weight of diesel engine (Kg): 3390 External dimensions (mm): 2524 * 1311 * 1731

Products Description

Product packaging

Our Factory

Manufacturing Technique

Certifications

Recommend Products

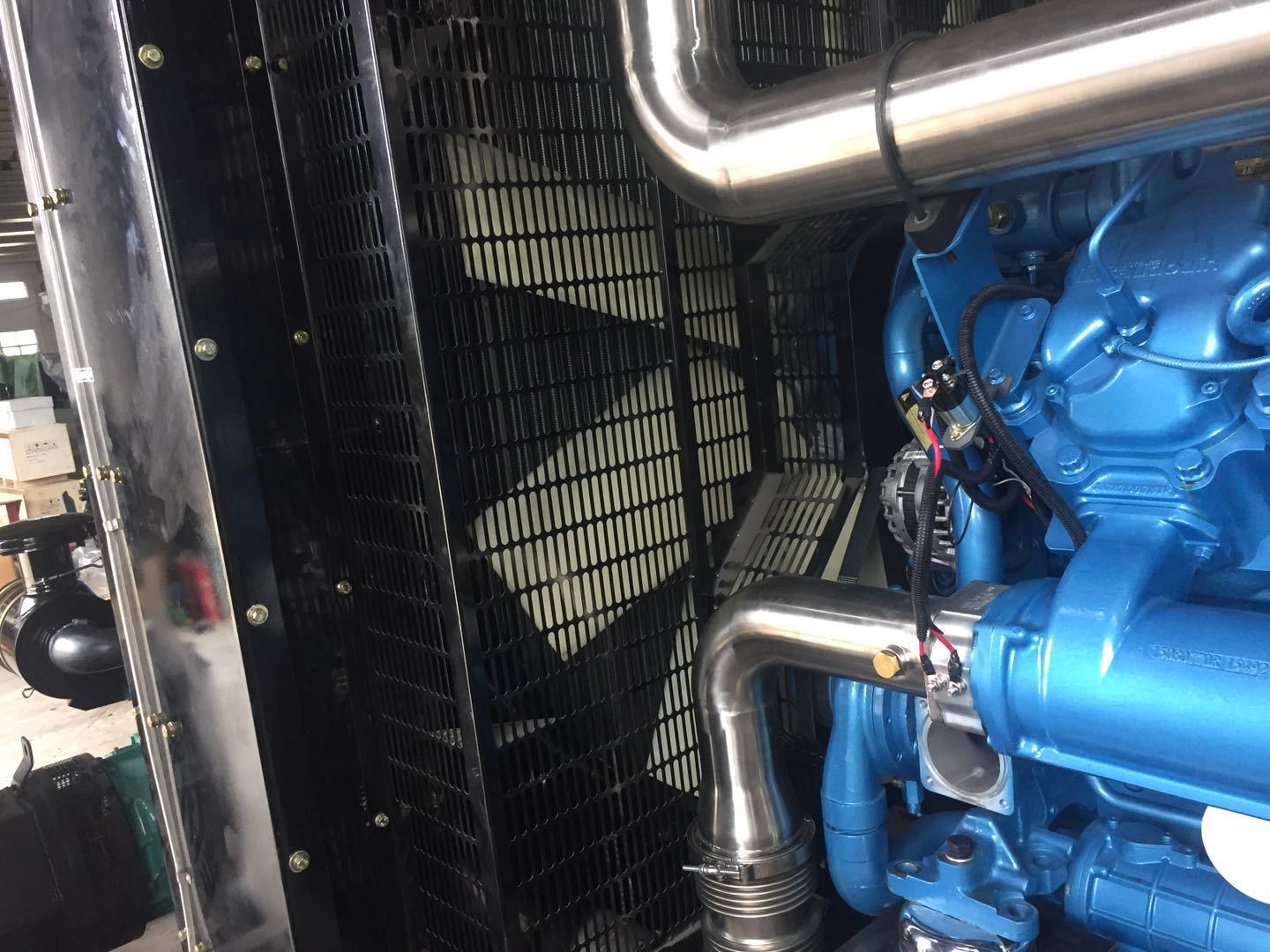

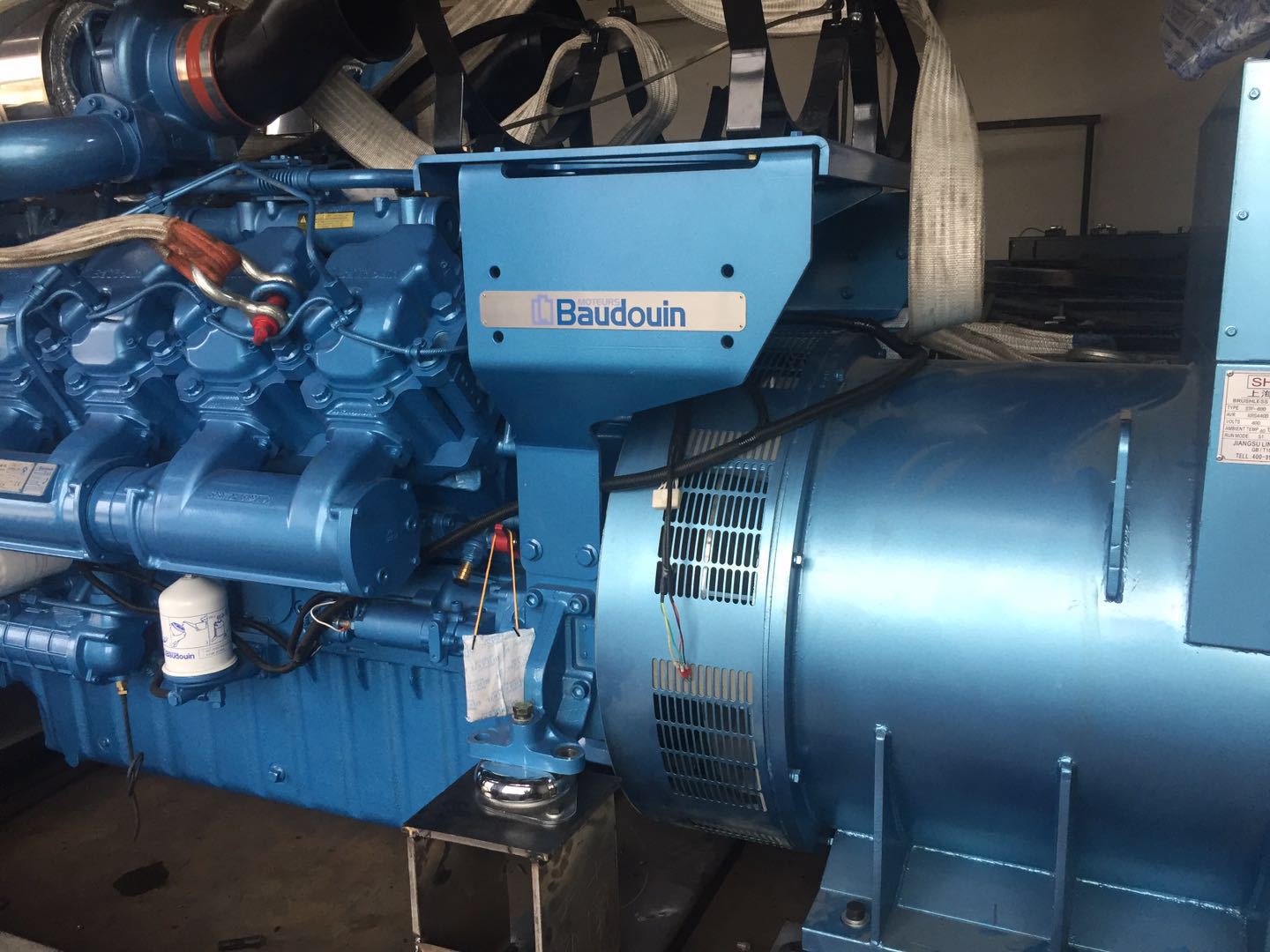

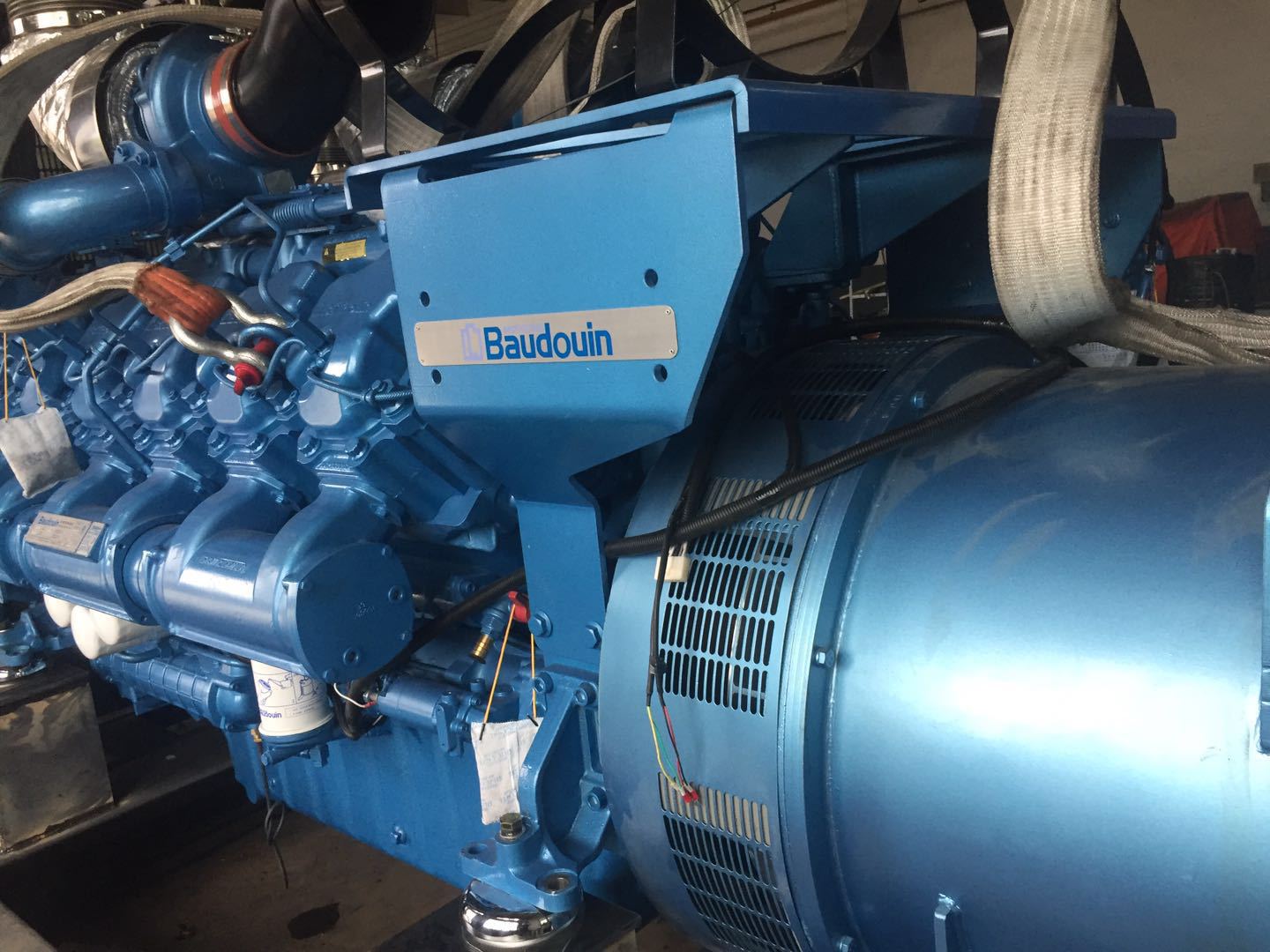

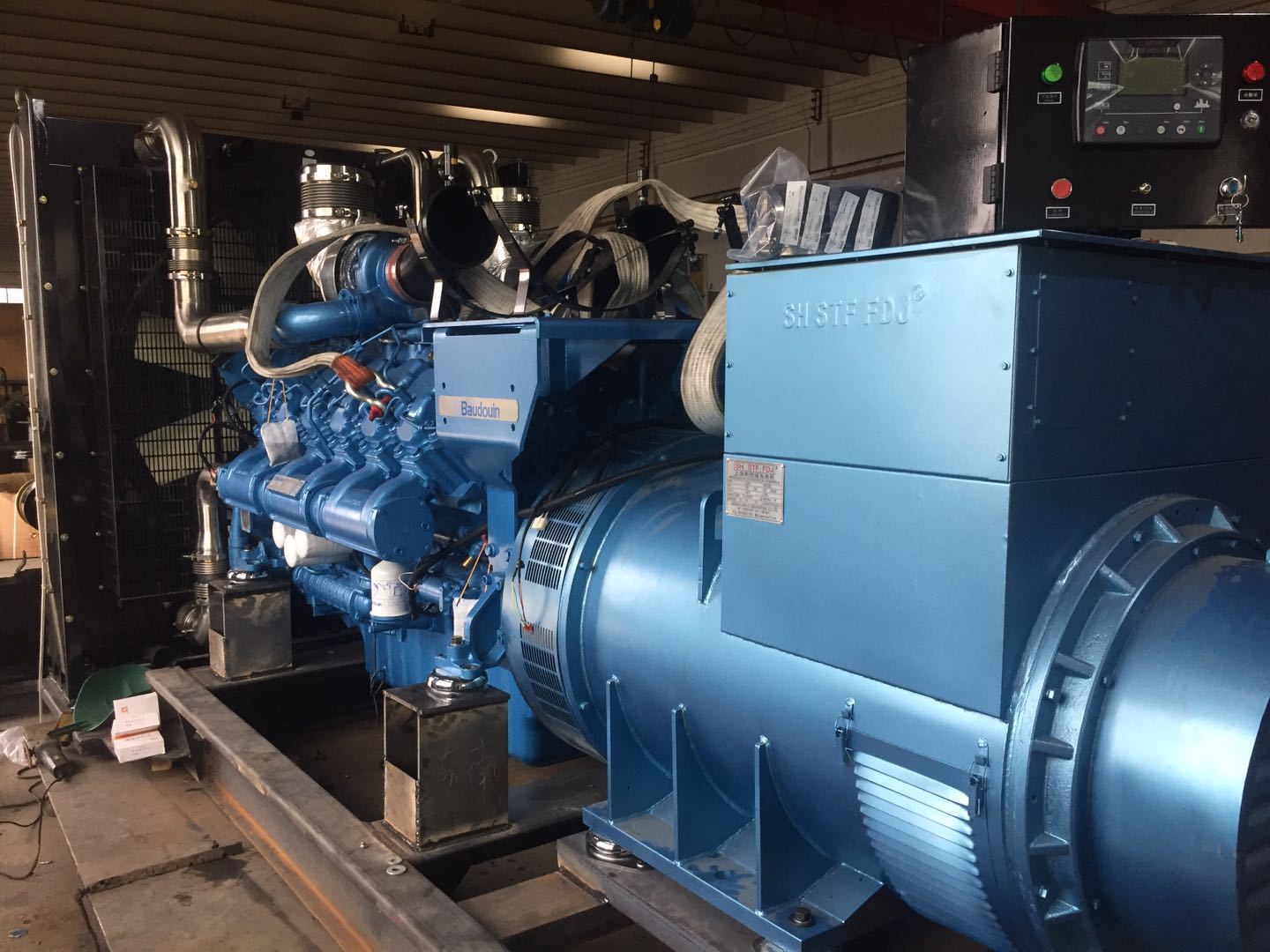

Large School Backup Emergency Power Supply 1000KW Weichai Boduan Diesel Generator Set Images
