Large School Backup Emergency Power Supply ISO9001 800KW Weichai Diesel Generator for Customers' Request

Warranty : 3months-1year

Place of Origin : China

Brand Name : weichai

Model Number : 12M26D902E200

Rated Voltage : 230V, 400V

Rated Current : 1440A

Speed : 1500RPM, 1800RPM

Frequency : 50/60HZ

Starting system : Auto Start

Type : Trailer Type, Silent type, Container Type, Super Silent Type, Open Frame, Portable Type, Mobile Type, Canopy Type, Silent

Weight : 7000Kg

Cooling System Type : Water cooling system

Alternator : Marathon

Options : Automatic Transfer Switch

Engine type : Direction Injection

Product Name : Silent speaker unit

Color : Customers' Request

Phase : 1 Phase/3 Phase

ControllerControl panel : Smargen

Rated Power : 800KW

Packaging Details : Box packaging

Price : $63,217.00/units >=1 units

MOQ : 1 unit

Contact Now

Details Images
Large School Backup Emergency Power Supply ISO9001 800KW Weichai Diesel Generator for Customers' Request
Large School Backup Emergency Power Supply ISO9001 800KW Weichai Diesel Generator for Customers' Request

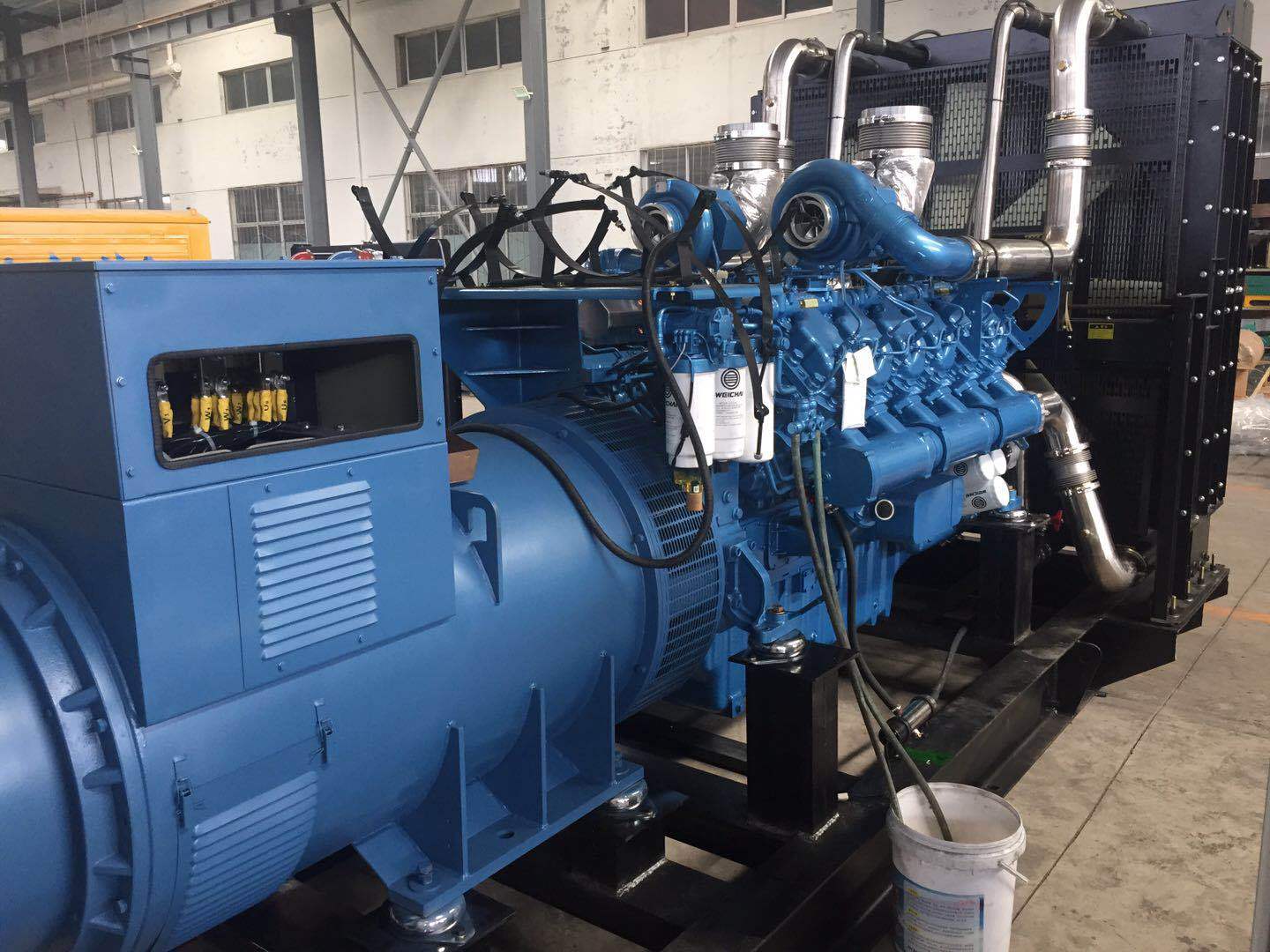

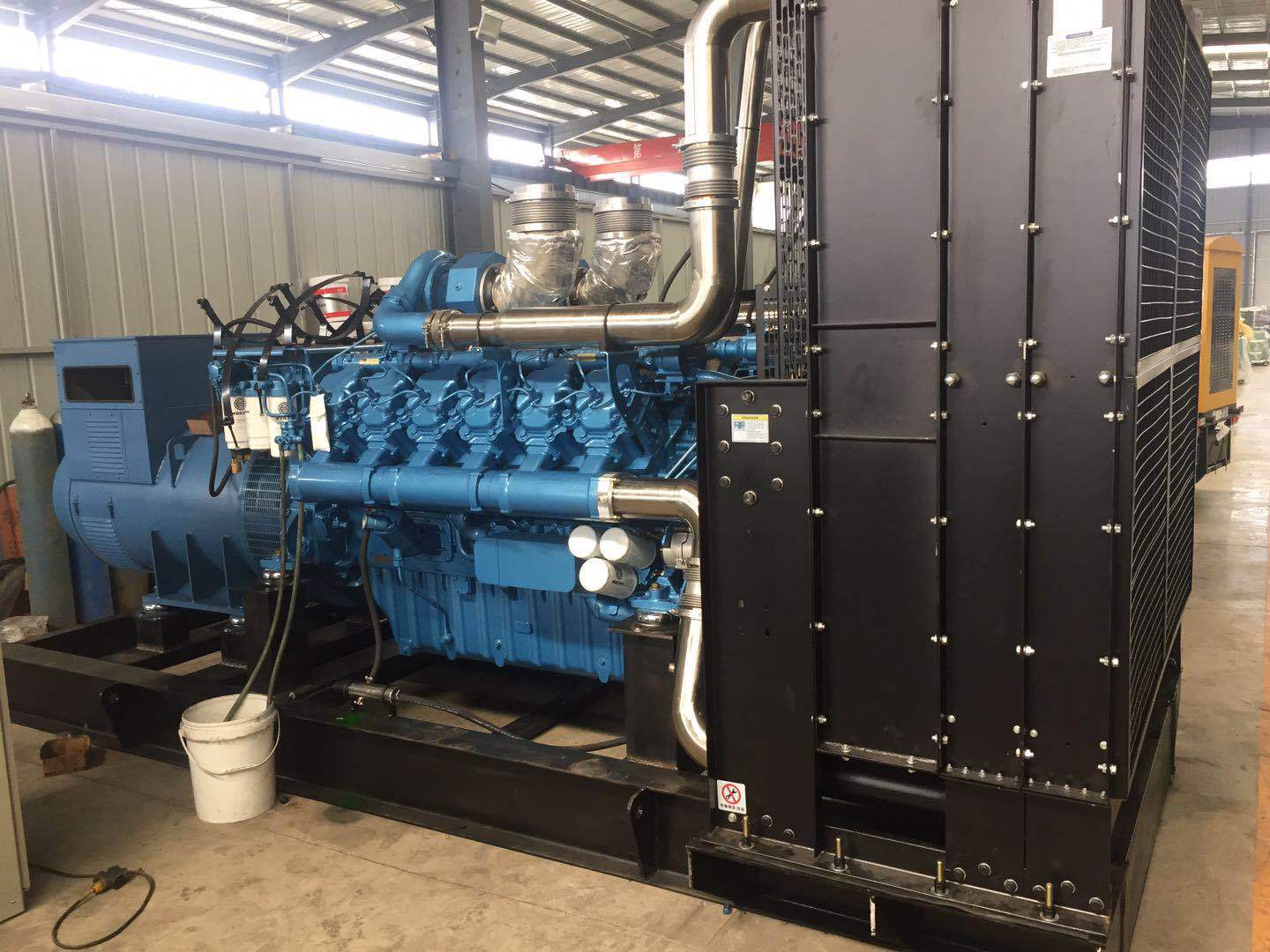

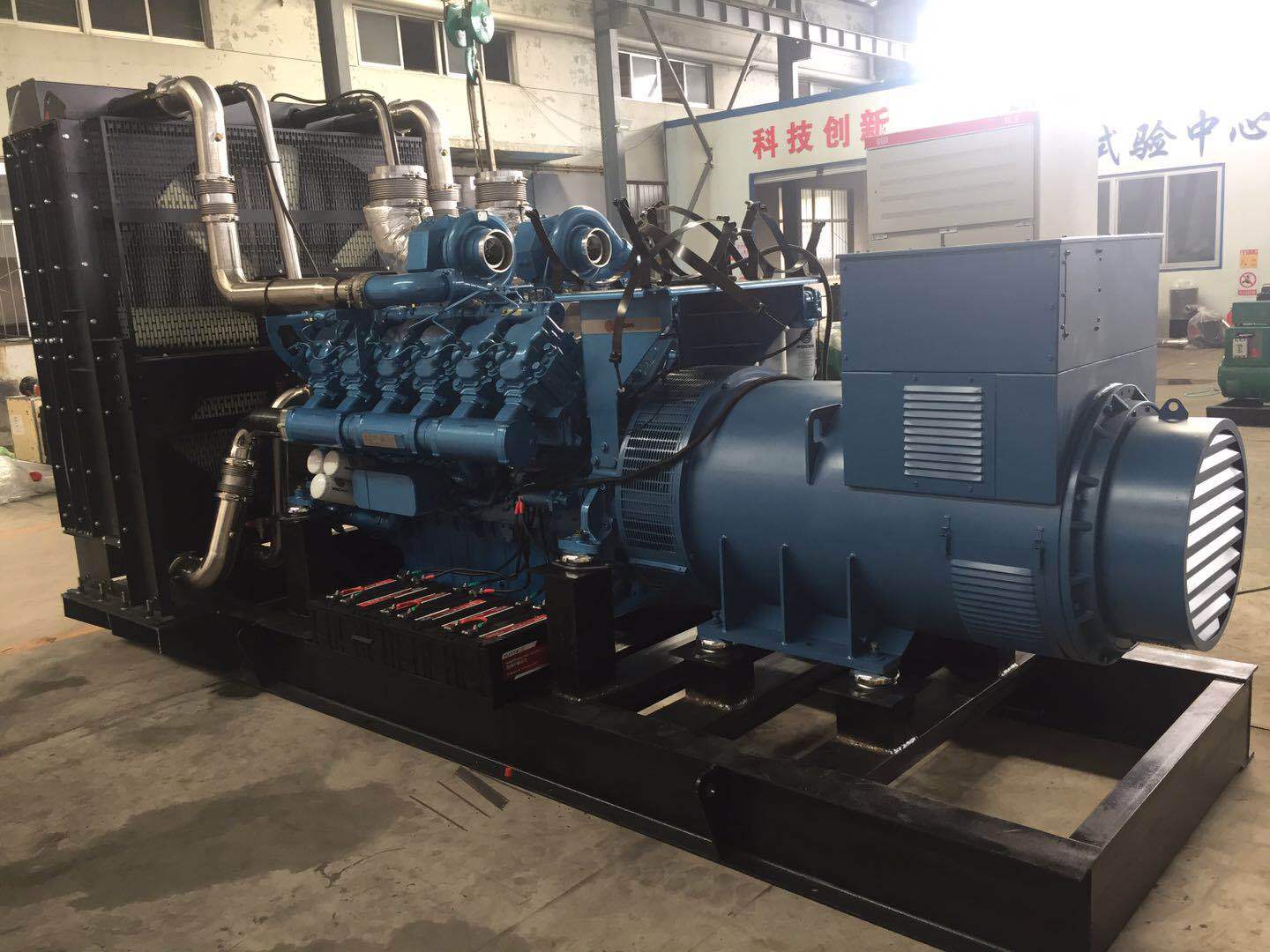

800KW Weichai diesel generator
Diesel generator set data Model BM700GF Rated output power (KVA/KW) 875/700 Rated output current (A) 1260 Wiring method: three-phase four wire power factor 0.8 (lagging) Starting method 24V DC starting frequency (Hz) 50 Unit weight (kg) 7000 Unit dimensions (length * width * height) 4200 * 2050 * 2300mm Diesel engine data Manufacturer Boduan (Weifang) Power Co., Ltd. Model 12M26D902E200 Rated speed (Rpm) 1500 engine maximum power (KW) 902 Cylinder diameter stroke 150 * 150, compression ratio 15:1 Number of cylinders 12, fuel consumption rate (g/kWh) ≤ 210 Speed regulation method: Electric oil and fuel consumption ratio (%) ≤ 0.5 Displacement (L) 113, intake method, exhaust gas turbocharging The engine cooling method meets the ambient temperature of 40 ℃. The radiator is belt driven and the cooling fan is equipped with a fan safety cover Generator data Manufacturer Jiangsu Lingyu Electric Motor Co., Ltd. Model STF-700 Power (KVA/KW) 875/700 Protection level IP22 Insulation level H, power factor 0.8 lagging No load voltage adjustment range ≥ ± 5% Voltage control mode AVR Efficiency (%) 88.4 Wiring method three-phase four wire
